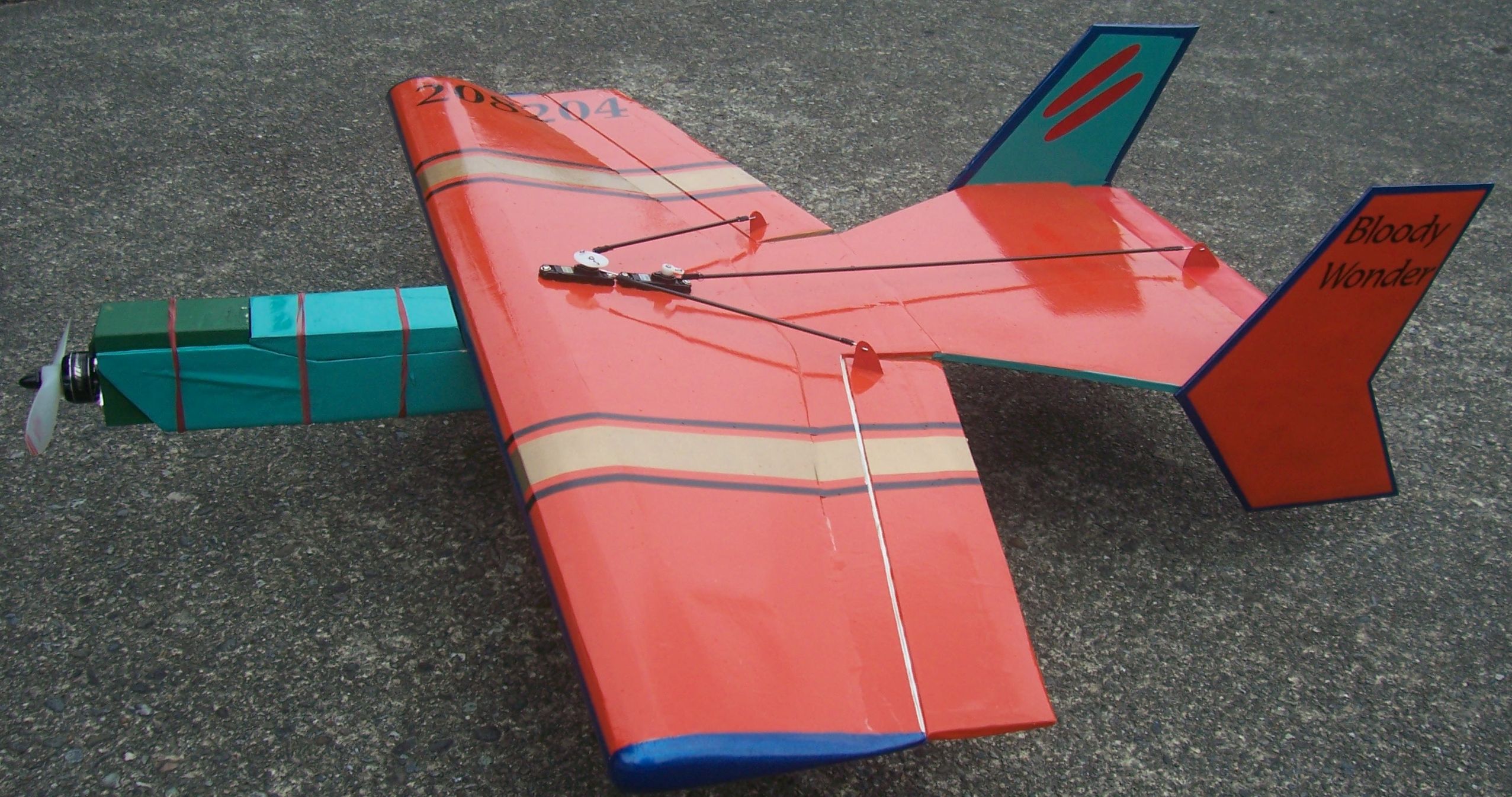

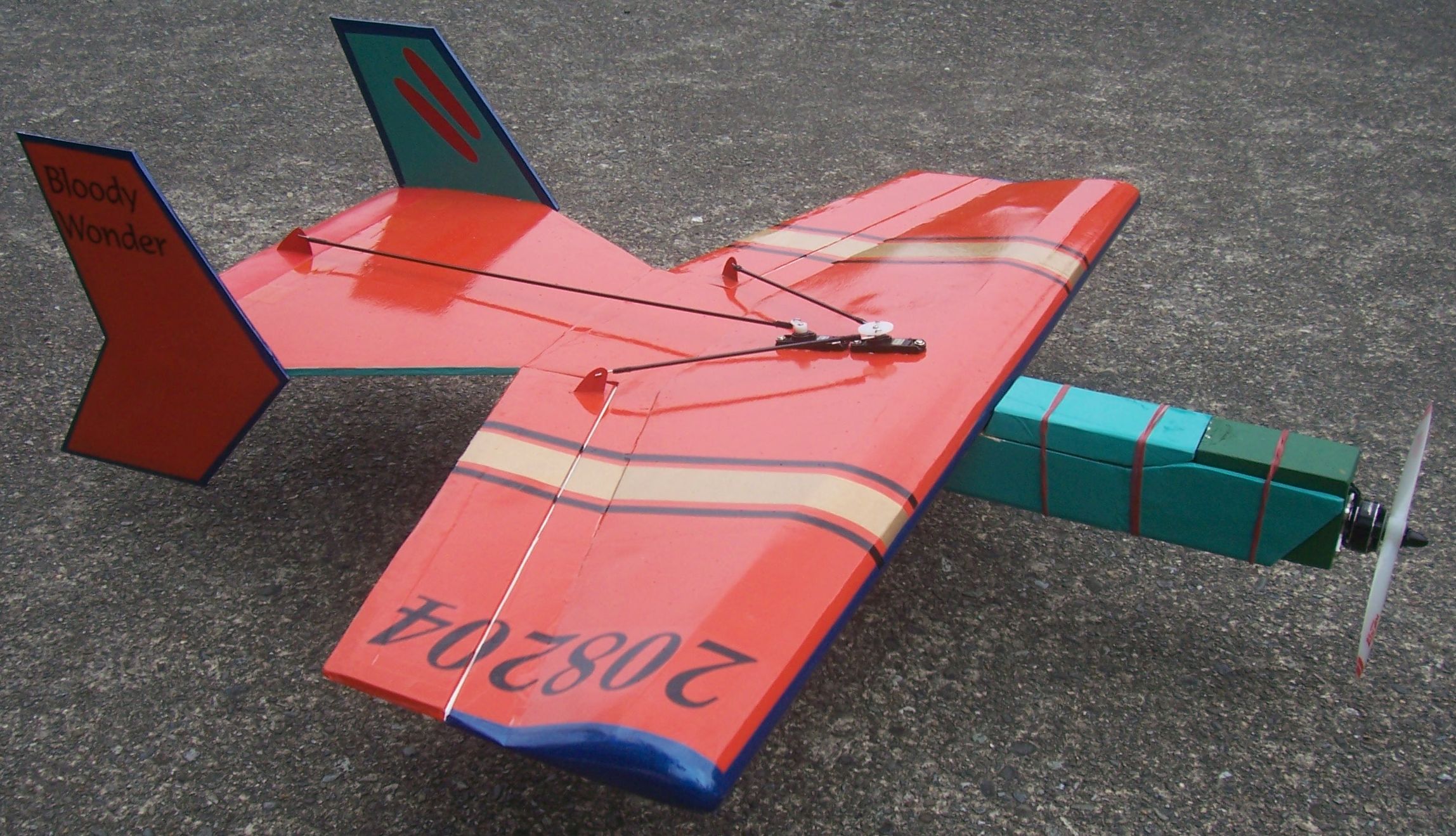

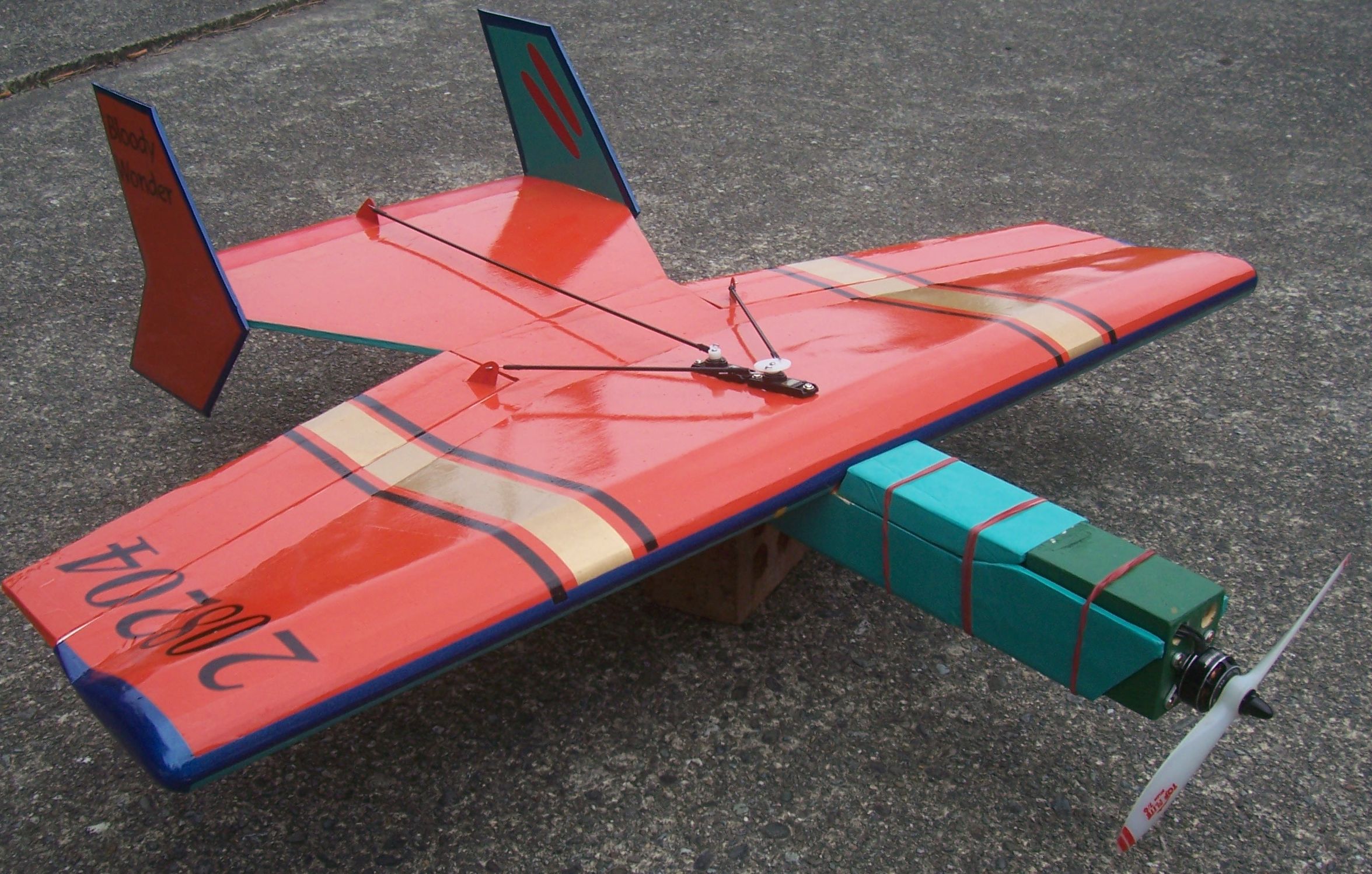

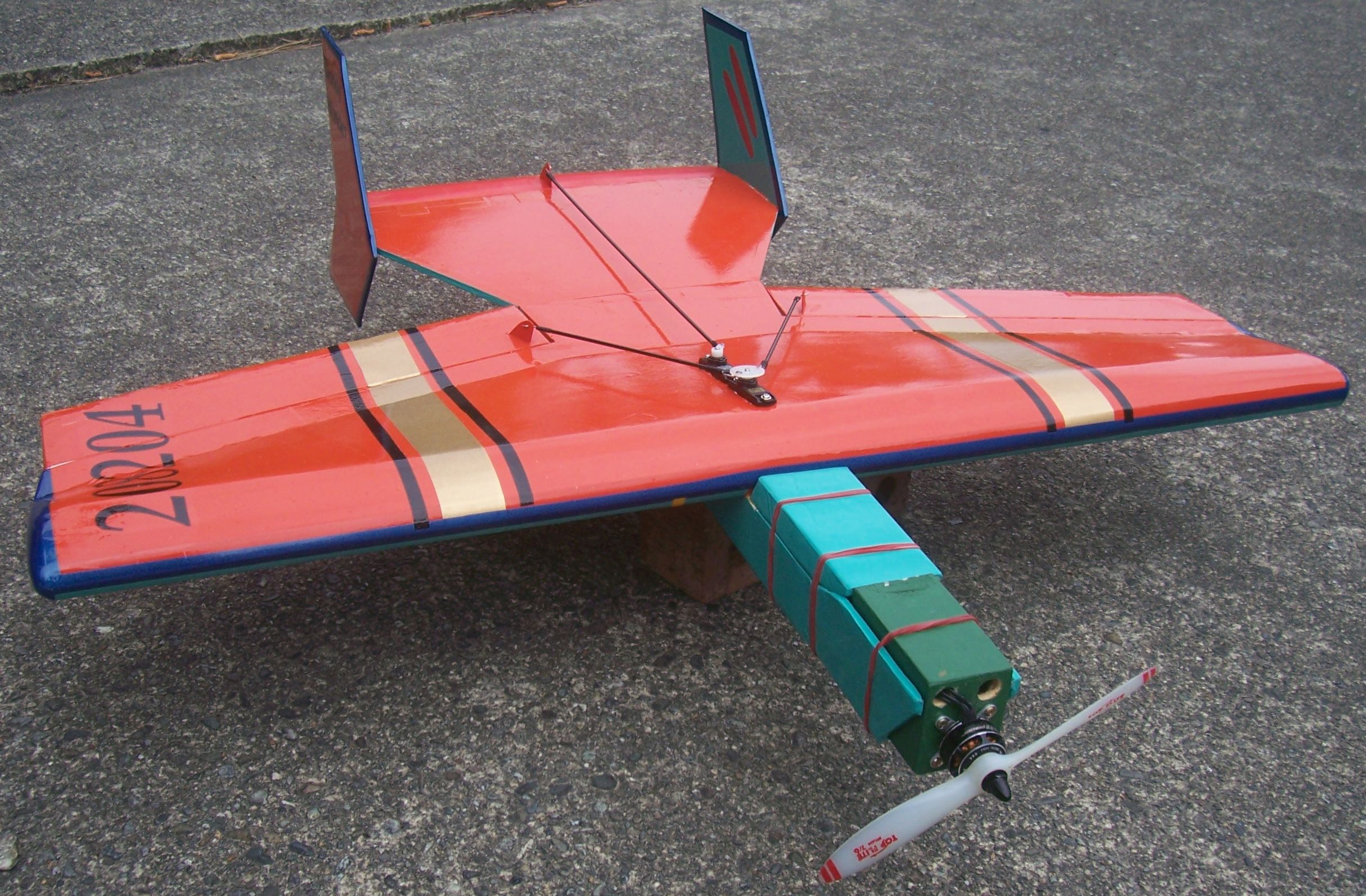

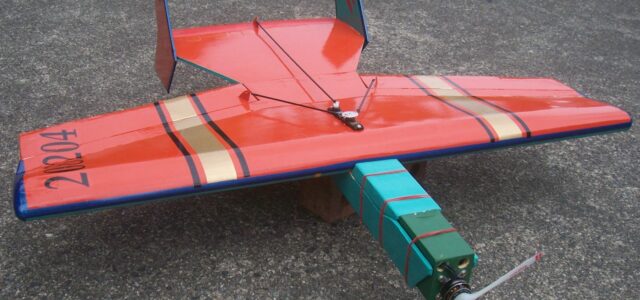

Final Build Photos
Please rate this ride  (1 votes, average: 5.00 out of 5) Loading...[Sassy_Social_Share count=”1″]
|
| Submitted By | |
| Scott Kruize | |
| Tukwila, WA, United States | |
| Build Information | |
| Build Type | Plans-built |
| Manufacturer/Brand Name | |
| Aircraft Category | Aerobat |
| Model name, number, and/or variant | FT Bloody Wonder |
| Wingspan/Rotor span (inches) | 32″ |
| Scale | n/a |
| Construction Type | Foam-cored art/sign board |
| Propulsion Type | Prop |
| Power System | Electric |
| Electric Motor Brand and Model | RC-InPower G2306-2200Kv |
| Speed Control Brand and Model | HobbyKing 30A UBEC |
| Battery Brand and Model | Turnigy 1.4 Ah 3-cell Li-Po |
| Propeller (if applicable) | Top Flite 7d6p Nylon |
| Radio System Brand and Model | Spectrum DX5e |
| Number of channels utilized | 3 |
| Channel functions | Throttle, Elevator, Ailerons |
| Retracts or Fixed Gear |
No gear; for hand-launch |
| Cockpit/Interior Details |
n/a |
| Paint, Covering or Graphics |
low-temp iron-on polyester, various makes and colors |
| Scale Accessories |
n/a |
| Light System |
n/a |
| Smoke System |
n/a |
| Sound System |
n/a |
| Other Features or Options |
Removable power module is 3/32″ birch plywood motor mount built into hard sheet balsa box; all the rest is cut, folded, and glued foamboard |
| Further Description/Back Story |
When I saw Josh’s ‘FT Bloody Wonder’ YouTube video, I knew I had to build it! A whole simple, easy to build design, using only artboard: paper-sided over a styrene-foam core…fitted with cheap radio and power gear, yet with astonishingly high performance! I deviated from the planes in the video only in doing an elaborate multicolored finish, with assorted low-temp films. All-up weight is only 1 1/2 pounds for LOW wing loading and BRISK performance! When my thumbs catch up to that performance, maybe I’ll take it into Combat! |
Build Process Photos
